Genuine Volkswagen OEM Retrofit Kit – Low Line Rear View Camera With Guidance Lines for 2015 VW Touran

NEW 2015 VW Touran – Rear Camera KIT with Guidance Line

To make sure that the product will be compatible
please provide the chassis number (VIN) in the ordering process or by email.

Handle with integrated camera and controller. Provide VIN to check. Visual representation of the rear of the vehicle in the navigation system by way of the integrated camera

Features:

• No additional screens necessary
• Auto switch to the rear view cam by choosing the rear gear

Compatible with :

• New Touran (2015)


Compatible with Head Unit:

• Composition Media
• Discover Media
• Discover Media Plus

• 3Q0 035 846
• 3Q0 035 846 A

Not Compatible with Head Units:

• 5G0035820 – all index
• 5G0035819 – all index
• 5G0035812 – all index

Note:

• On request we can perform the installation for you in our workshop
• VAS / VCDS Coding after installation required

Wiring Diagram:

RED         –      +12V constant
YELLOW  –      reverse light signal
BLACK     –     GND

Video Signal:

(QUADLOCK connector head unit) – 8X0 035 447

PIN No. 6   – transparent wire
PIN No. 12 – black wire

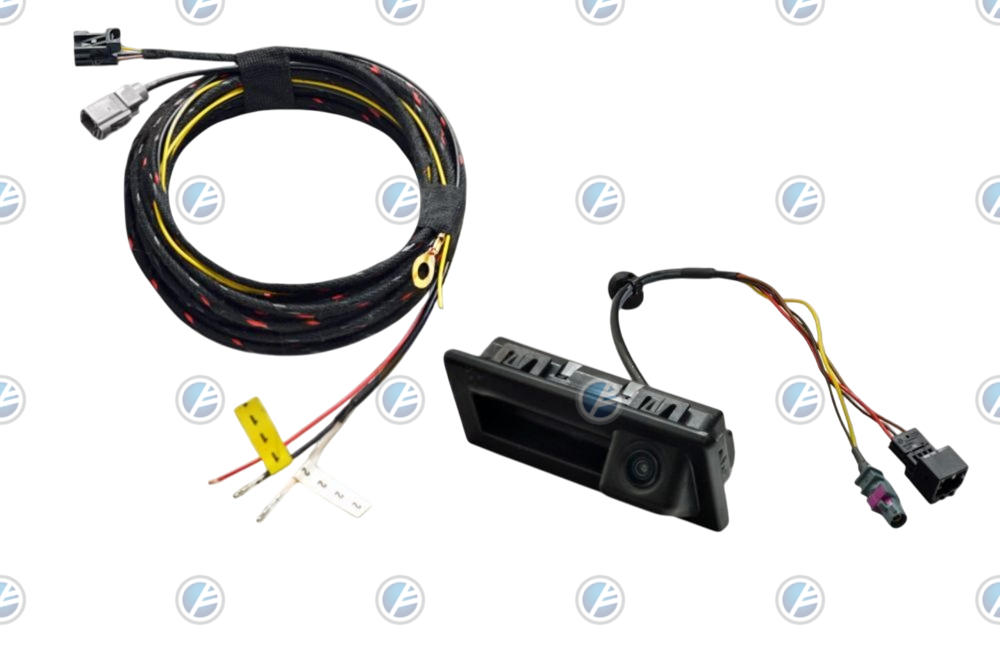

Scope of delivery :

• VW Camera in Handle
• Plug&Play Cable

WARNING:

Please note vehicles starting with model year 2024
with installed PR number NI8 (NI8 = Without UNECE CS (R155) and SU (R156) with SFD2-SG)
or installed PR number NI7 (NI7 = With UNECE CS (R155) without SU (R156))
or installed PR number NI9 (NI9 = With UNECE CS&SU)
or installed PR number NI1 (NI1 = With UNECE CS&SU).

Unfortunately, it can be that these models cannot be retrofit or activated at this time.
Please take this information into consideration before purchasing and contact us providing the VIN to check.
