Genuine Volkswagen OEM Retrofit Kit – Wiring Harness For Rear Emblem High Line Camera with Guidance Line for VW Golf MK6

Volkswagen Golf Mk6 – P&P wiring harness
for Rear Emblem High Line Camera with Guidance Line

Lenght : 450cm main wiring from head unit to module and 230cm from module to camera

Compatible with Camera in Emblem 5K0827469AS and similar – HIGH VERSION  – GREY FAKRA

Diagram

• RED         +12 – Countinuous
• BLACK      GND
• BROWN    CAN LOW
• ORANGE   CAN HIGH

Parts needed in addition:

• VW Emblem with Camera
• VW Rear Cam Module Highline 5N0907441

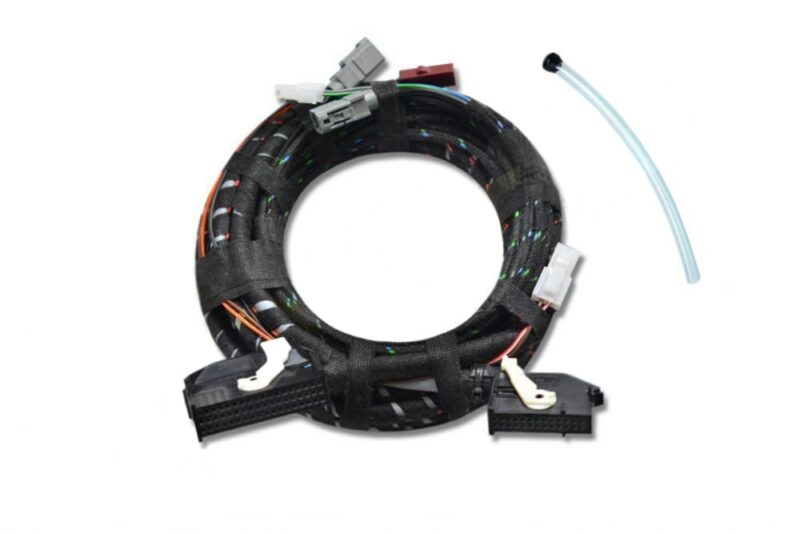

Scope of delivery :

• Plug & Play Cable – lenght 680cm
• Drain Tube
